AC AXIAL FAN 17251 SERIES

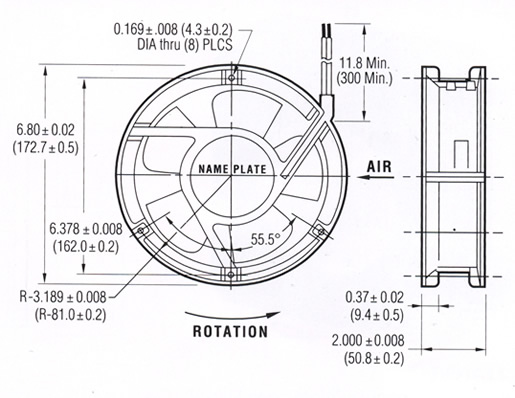

Size 172 * 150 * 51 mm.

Airflow 235 - 106 CFM.
Motor Shaded pole, impendance protected.
Frame
(Houseing)		 Aluminum die-cast.
AP: Painted black. AN: Natural
Impeller PBT+ 30% fiber glass. Black color.
Lead wire 1007# 18AWG. UL/CSA.
Insulation
Resistance		 Min.10 M Ohm at 500 VDC
between terminal and the frame.
Dielectric
Strength		 1 min at 1,500 VAC,
50/60 Hz
Net Weight 930 grams ( 2.31 pounds)
Bearing Type B: 2 ball bearing. S: 1 sleeve bearing.
Operating
Temp		 Ball bearing.: Within - 20 ~ 80 degree C.
Sleeve bearing.: Within - 10 ~ 56 degree C.
Life
Expectancy		 Ball bearing.: 50,000 hours at 60 degree C.
Sleeve bearing.: 20,000 hours at 45 degree C.
Above Measurements Tem. at: Within 20 ~ 30 degree C.
Above Measurements Humidity at: 65% + - 15%.
Safety Approvals : UL. CE. TUV.

MODEL
NO.		 RATED
VAC		 VOLTAGE
RANGE
VAC		 FREQ-
HZ		 RATED
AMP		 RATED
R.P.M.		 MAX. AIR FLOW MAX. AIR STATIC
AIR-PRESSURE		 NOISE
LEVEL
DBA
CMM CFM MM/AQ INCH/AQ
M17251115H 115 80-120 60 0.24 3000 6.60 235 20 0.79 48
M17251115M 115 80-120 60 0.19 2400 4.80 170 14 0.55 37
M17251115L 115 80-120 60 0.16 1700 3.00 106 8 0.31 29
B17251115H 115 80-120 60 0.24 3000 6.60 235 20 0.79 48
B17251115M 115 80-120 60 0.19 2400 4.80 170 14 0.55 37
B17251115L 115 80-120 60 0.16 1700 3.00 106 8 0.31 29
M17251230H

230

 160-260

50

 0.12 3000 6.60 235 20 0.79 48
M17251230M 230 160-260

50

 0.09 2400 4.80 170 14 0.55 37
M17251230L

230

 160-260

50

 0.07 1700 3.00 106 8 0.31 29
B17251230H 230 160-260

50

 0.12 3000 6.60 235 20 0.79 48
B17251230M 230 160-260

50

 0.09 2400 4.80 170 14 0.55 37
B17251230L 230   160-260

50

 0.07 1700 3.00 106 8 0.31 29
